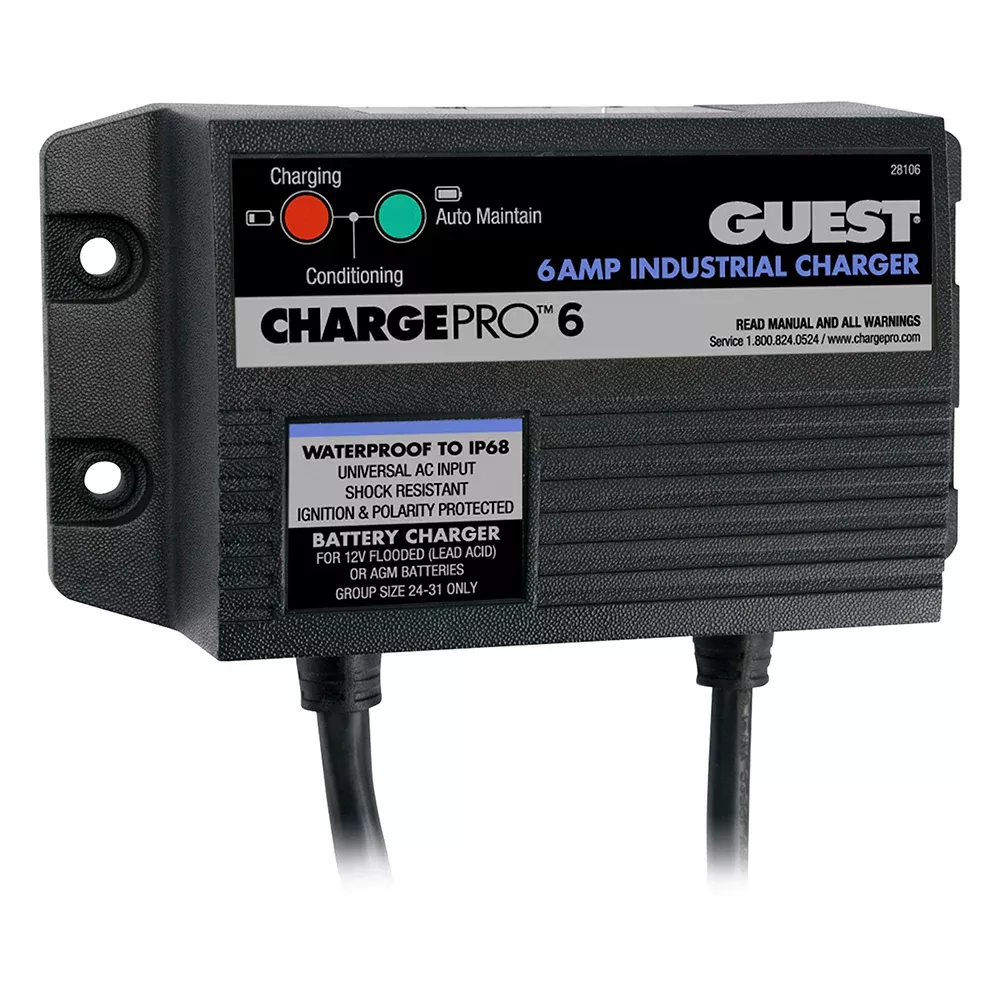

Guest 6A /12V 1 Bank 120V Input On-Board Battery Charger [28106]

Description

6A/12V 1 Bank 120V Input On-Board Battery Charger

ChargePro onboard chargers have the same housing and mounting dimensions as our traditional Charge Pro Guest chargers with a number of performance enhancements.

Features:

• Charge flooded and AGM batteries
• Microprocessor controlled for accurate charging
• Universal input 120/230V input for go-anywhere freedom
• Intuitive operation
• Isolated outputs
• Outputs can be put in series or parallel for higher voltage or current
• Completely sealed, epoxy filled
• IP68 waterproof
• Designed for harsh marine and industrial environments – moisture, salt, shock and vibration tested
• Non-corroding housing for ultimate reliability
• Meet global industry standards including UL, CE, CSA, ABYC, California efficiency regulations (CEC)
• Footprint same as former Charge Pro Guest Chargers
• ConnectCharge Plug for easy assembly to inlet (Item 150CCI) with no wiring

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Charger Output – Amps: 6a
• Charging Banks: 1
• Portable: No
• Charger Input – Voltage: 120/230v
• Charger Output Voltage: 12v
• Box Dimensions: 3″H x 7″W x 9″L WT: 3.4 lbs
• UPC: 093344058257

Owner’s Manual (pdf)
